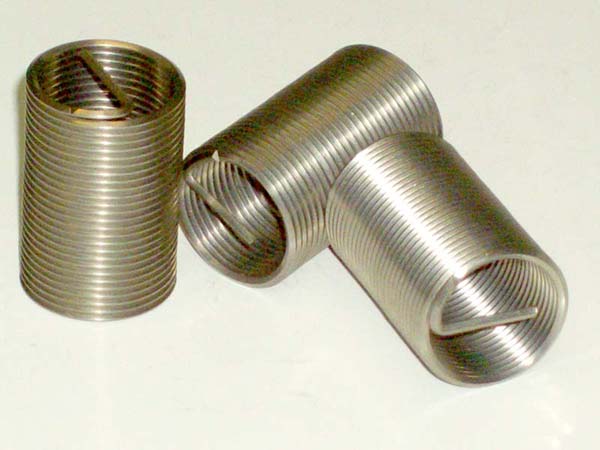

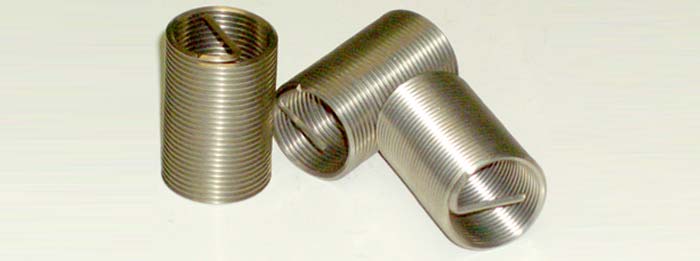

Filetti Elicoil
| COD. CCT | Ø mm. | PASSO | ALTEZZA |
|---|---|---|---|
| E 1 | 5 | 0.8 | 5 |
| E 2 | 5 | 0.8 | 7.5 |
| E 3 | 5 | 0.8 | 10 |
| E 4 | 6 | 1 | 6 |
| E 5 | 6 | 1 | 9 |
| E 6 | 6 | 1 | 12 |
| E 06 A | 6 | 1 | 15 |
| E 7 | 8 | 1 | 8 |
| E 8 | 8 | 1 | 12 |
| E 9 | 8 | 1 | 16 |
| E10 | 8 | 1.25 | 8 |
| E11 | 8 | 1.25 | 12 |
| E12 | 8 | 1.25 | 16 |
| E13 | 10 | 1 | 10 |
| E14 | 10 | 1 | 15 |
| E15 | 10 | 1 | 20 |
| E16 | 10 | 1.25 | 10 |
| E17 | 10 | 1.25 | 15 |
| E18 | 10 | 1.25 | 20 |
| E19 | 10 | 1.5 | 10 |
| E20 | 10 | 1.5 | 15 |
| E21 | 10 | 1.5 | 20 |
| E22 | 12 | 1 | 12 |
| E23 | 12 | 1 | 18 |
| E24 | 12 | 1 | 24 |
| E25 | 12 | 1.25 | 12 |
| E26 | 12 | 1.25 | 18 |
| E27 | 12 | 1.25 | 24 |
| E28 | 12 | 1.5 | 12 |
| E29 | 12 | 1.5 | 18 |
| E30 | 12 | 1.5 | 24 |
| E31 | 12 | 1.75 | 12 |
| E32 | 12 | 1.75 | 18 |
| E33 | 12 | 1.75 | 24 |
| E34 | 14 | 1.25 | 7.5 FC |
| E35 | 14 | 1.25 | 10.5 FC |
| E36 | 14 | 1.25 | 14 FC |
| E37 | 14 | 1.25 | 18 FC |
| E38 | 14 | 1.5 | 14 |
| E39 | 14 | 1.5 | 21 |
| E40 | 14 | 1.5 | 28 |
| E41 | 16 | 1.5 | 24 |
| E42 | 16 | 1.5 | 40 |
| FC = FILETTI CANDELE SI FORNISCONO FILETTI ELICOIL DA Ø 2 A Ø 68 NEI SEGUENTI SISTEMI: METRICO - UNC - UNF - BSW - GAS - BA |
|||
